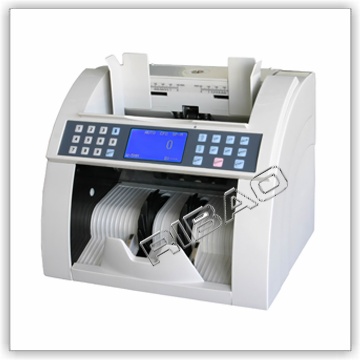

Technical Specification: CE approved click for larger photo
BC-2000V series Currency Counter is heavy duty and ecomonic currency counter for worldwide banknotes.
We developed BC-2000V series banknote counter based on BC-2000 series banknote counter. We upgraded it with the LCD and value counting function.
Its unique feeding system ensure its performance on counting various quality banknotes, even the very poor oiled banknotes, its optional Ultraviolet (UV) , Magnetic and Metal thread counterfeit detection Aid can avoid your loss by receiving counterfeit banknotes in cash handling field.
| Models |
UV |
MG |
Width detection |
length Detection |
| BC-2000V Basic | | | ● | |
| BC-2000V/UV | ● | | ● | |
| BC-2000V/UV/MG | ● | ● | ● | |
| BC-2000V/UV/3D | ● | | ● | ● |
| BC-2000V/UV/MG/3D | ● | ● | ● | ● |
| Counting Speed: |
700, 1,000, 1,500 notes/min |
| Hopper Capacity: |
500 notes |
| Suitable Note Size: |
120 x 50 ~ 175 x 90 mm |
| Thickness: |
0.05-0.2mm |
| Operation Mode: |
a)continuous counting mode |
| |
b) Batch counting mode |
| |
c) Double detection mode |
| |
d) Width detection mode |
| |
e) UV counterfeit detection |
| |
f) 3D counterfeit detection |
| |
g) MG counterfeit detection |
| Power Requirements: |
110V or 220V, AC 50/60HZ. |
| Dimensions: |
280 (W) x 225 (D) x 250 (H) mm |
| Weight: |
7kg |
| Outer Packing: |
2 units/carton |
| Carton Dimensions: |
63 x 34 x 35cm |
| N.W.: |
14kg |
| G.W.: |
16kg |
|
